narrow vines 1 to 2 rows

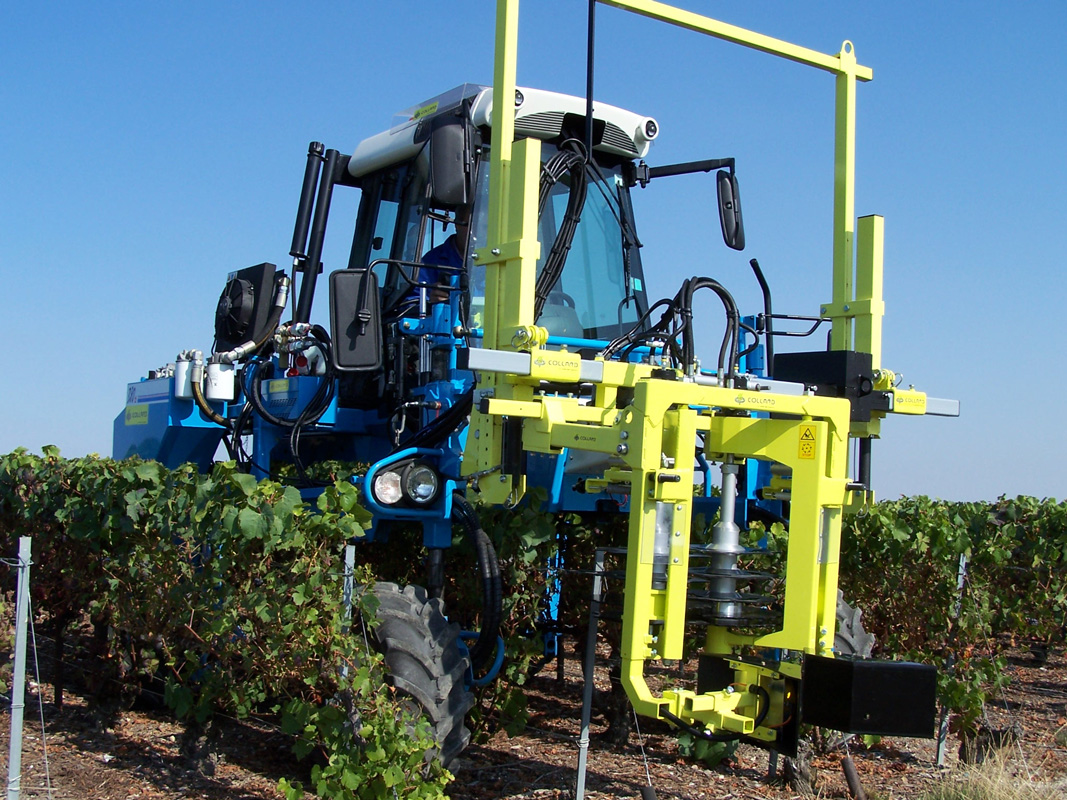

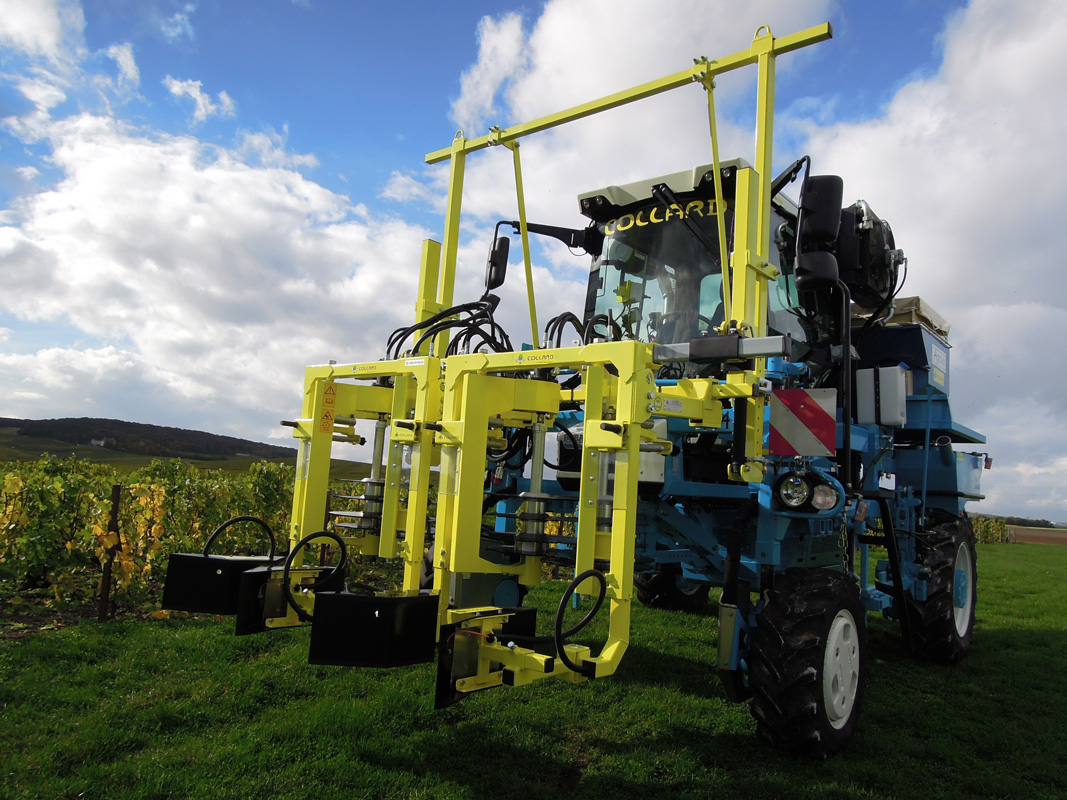

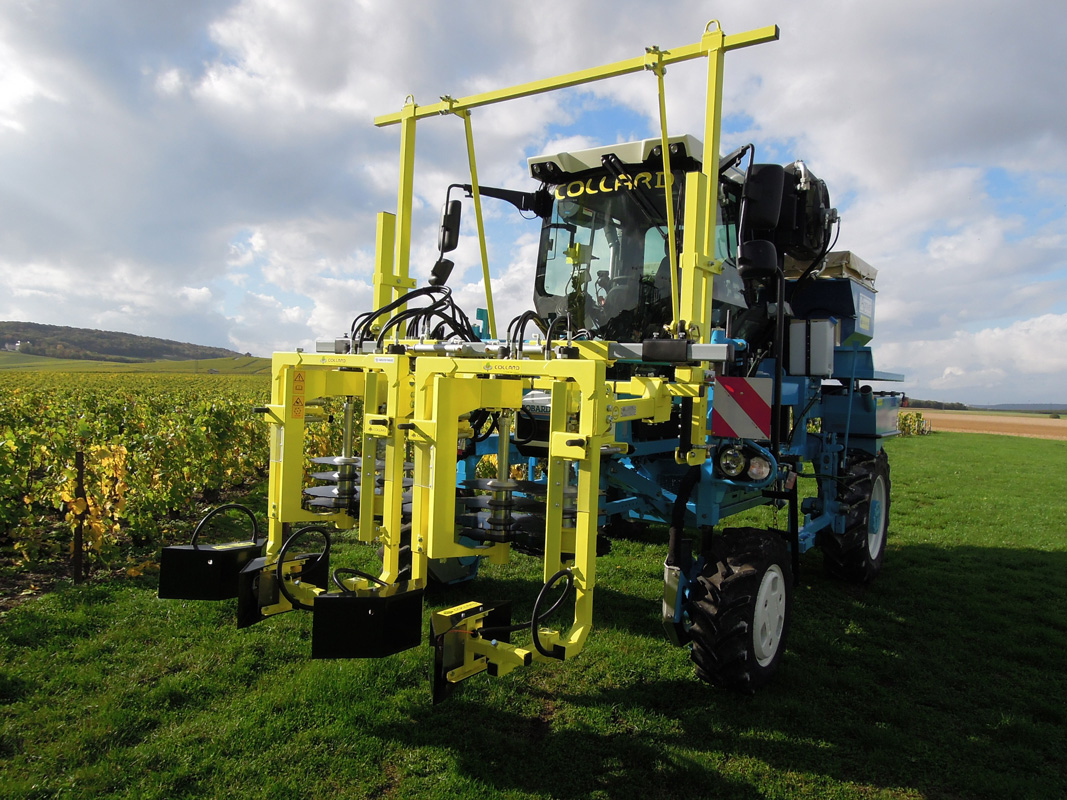

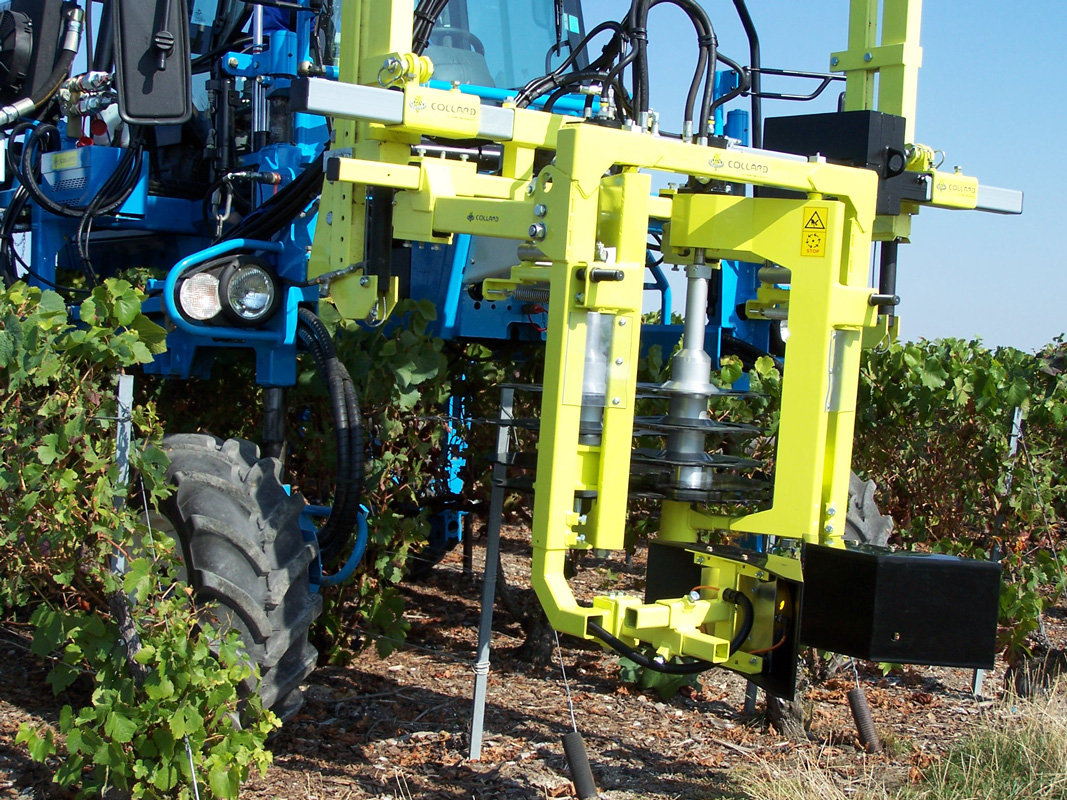

The COLLARD Prepruner range 1 row (PCE 3000) or 2 rows (PCE 3200)  is specially designed for straddle tractors or harvesting machines. Our Prepruners fit on the front total raising frame  of your Vine Trimmer. We define the vertical height of our machines according to your needs

Our machines have 3 modes of opening :

• Magnetic sensors : steel posts, usable before the leaves fall.
• Optical cells : Wood posts.
• Manual : via hand held switch for the operator.

Our machines are equipped with a system allowing an opening by a spring in case of impact with the post, this security protects the machine as well as your installations.

The COLLARD Prepruner is light and easy to use. Our pre-pruning system makes it possible to work at particularly fast speeds




Options
  • Magnetic or cells automatic modes.
  • A front lift frame, elevator type.
  • Frames for straddle tractors or harvesting machines with variable track.
  • Hydraulic width adjustment.
  • Other specificities on request.

Our main advantages

Security

In the case where the operator would forget to open the machine at the post (manual opening), the machine will open mechanically by spring so as to protect the machine as well as the post.

Orientation of the heads

The heads open backward of the machine so as not to take the vegetation "backfire", this principle facilitates the work at high speed.

Cut quality

Our cutting system has been studied to leave a vine shoot cut cleanly cut. The speed rotation of the blades is adjustable to optimize this cut.

Light and energy efficient

The COLLARD Prepruner is lightweight but robust and, it requires a hydraulic flow practically same as a Vine Trimmer, so very little "energy-intensive".

Versatile

Easily, you can adjust the speed rotation of the blades, the opening delay and, adjust more or less the blade pressure on the cut depending on the density of the branches.

Modularity

The vertical height is modular, we adapt it according to your needs.

Exceptional hydraulic protection

Oil filtration, flow control, anti-return valve, pressure limiter, protect the hydraulic components of the Leaf Remover (motors, distributors, etc ...), these settings are sealed in the factory
